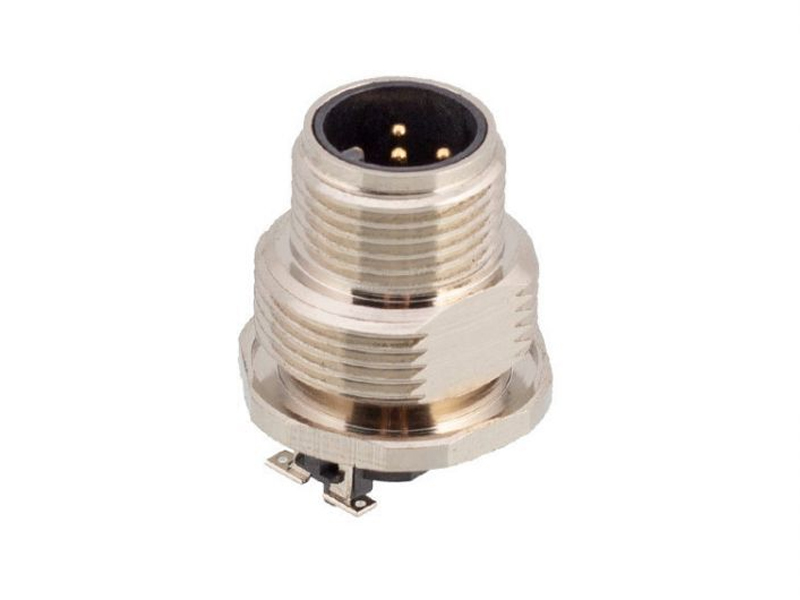

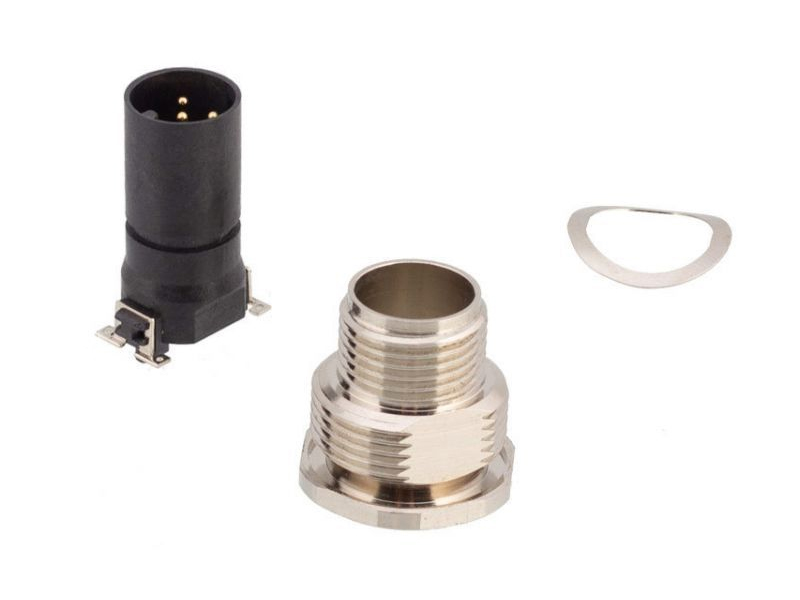

​M12 A CODE PLUG SMD 5 CONTACT

PART NUMBER:M12SMD05AP01
PROFILE:M12 A CODE 5POS PLUG SMD CONNECTOR, BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLE AND CONNECTORS···
86-132-8888-5667
ONLINE WECHAT
M12 A CODE PLUG SMD CONNECTOR
 Specifications
 Number of pins: 5 Pins Key Position: A Coded
 Left Connector: M12 A Code Plug Straight Right Connector: -
 AWG Gauge: - Connection Type Screw Locking
 Wires & Cables Length: -
 Material
 Housing & Insulation: PA 66, Black Contacts: Copper Alloy,Gold-Plated
 Shell: Copper Alloy,Nickel-Plated Sealing: NBR
 Shielding: Be Without Overmolding: -
 Wires & Cables Conductor: - Wires & Cables Jacket: -
 Technical Characteristics
 Rated Current: 4A Rated Voltage: 60V
 Rated Temperature -25°C ~ + 85°C Flame Retardant Grade:  VW-1
 Insulation Resistance: ≥ 500 MΩ Contact Resistance: ≤3mΩ
 Durability: ≥ 500 Times Protection Grade: IP67
 Product Certification: - Production Design Standards: IPC 620, IEC 61076-2-101
 Application
 BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS
 BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS
  • ONLINE CUSTOMIZATION

CUSTOMIZED PRODUCT NAME:​M12 A CODE PLUG SMD 5 CONTACT
