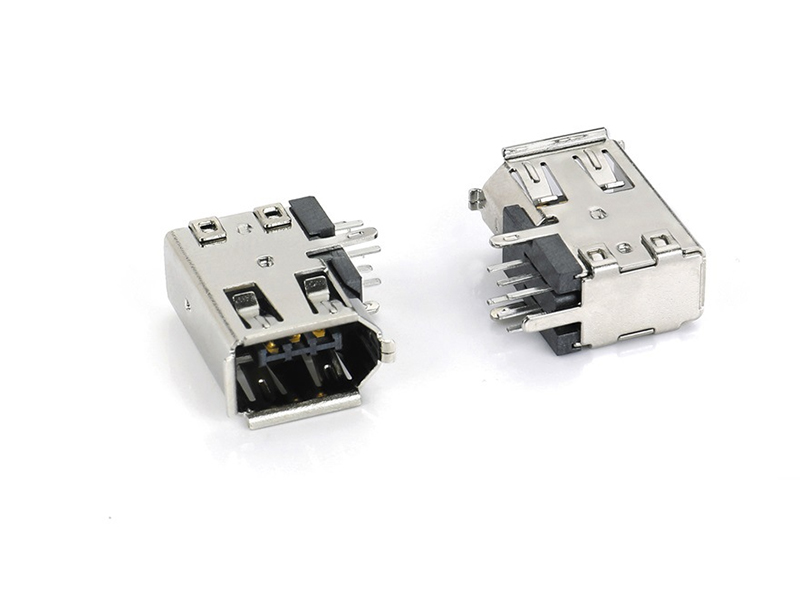

IEEE1394-6P SOCKET PLUG CONNECTOR 90 DEGREE SIDE STANDING PLUG-IN BOARD
IEEE1394-6P
IEEE1394-6P SOCKET PLUG CONNECTOR 90 DEGREE SIDE STANDING PLUG-IN BOARD
IEEE1394-6P-90 DEGREE
DISPLAY MORE PRODUCTS DOWNWARDS
Specifications | |||
Number of Pins: | 6 Pin | Key Position: | A Type |
Left Connector: | IEEE1394 6P Socket Angle | Right Connector: | - |
AWG Gauge: | - | Connection Type | Plug and unplug |
Wires & Cables Length: | - | ||
Material | |||
Housing & Insulation: | LCP | Contacts: | Copper Alloy, Gold-Plated |
Shell: | Copper Alloy, Nickel-Plated | Sealing: | - |
Shielding: | Shield | Overmolding: | - |
Wires & Cables Conductor: | - | Wires & Cables Jacket: | - |
Technical Characteristics | |||
Rated Current: | 2A | Rated Voltage: | 125V |
Rated Temperature | -55°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
Durability: | ≥ 1500 Times | Protection Grade: | - |
Product Certification: | CE, RoHS | Production Design Standards: | - |
Application | |||
