| Specifications | |||
| Number of pins: | 4 Pins | Key Position: | Micro circular |

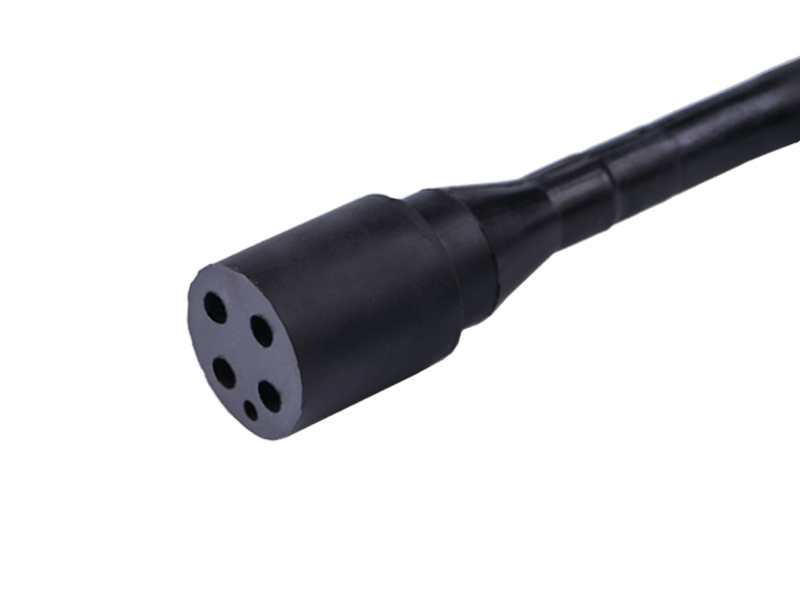

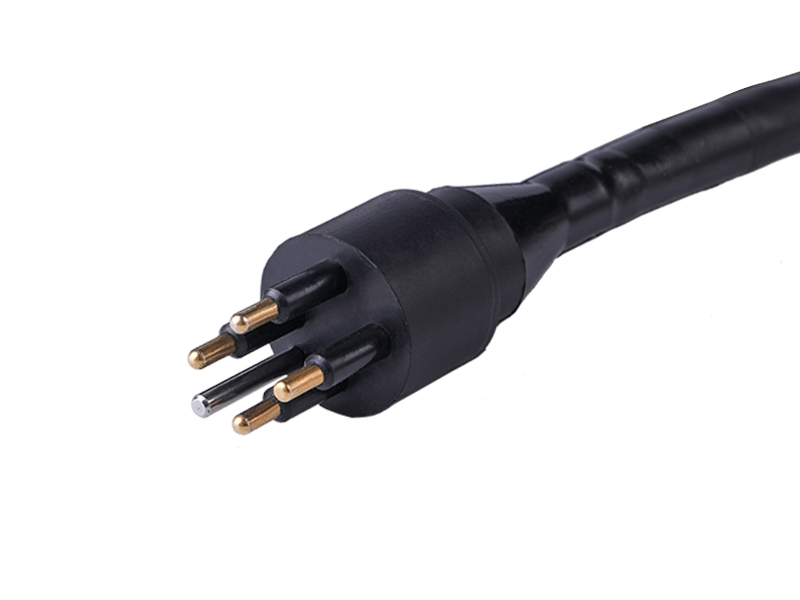

| Left Connector: | MCIL4M | Right Connector: | MCIL4F |
| AWG Gauge: | 18AWG | Connection Type | Screw Locking |
| Wires & Cables Length: | 600mm | ||
| Material | |||
| Housing & Insulation: | Chloroprene rubber, Black | Contacts: | Beryllium copper with Gold-Plated |
| Shell: | Stainless steel | Sealing: | Nitrile |
| Shielding: | - | Overmolding: | Rubber |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | Chloroprene rubber |
| Technical Characteristics | |||
| Rated Current: | 5A | Rated Voltage: | 300V |
| Rated Temperature | -40°C ~ + 60°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 200 MΩ | Contact Resistance: | ≤0.01Ω |
| Durability: | ≥ 500 Times | Protection Grade: | 500 meters underwater |
| Product Certification: | - | Production Design Standards: | - |
| Application | |||
| BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS | |||
