| Specifications | |||

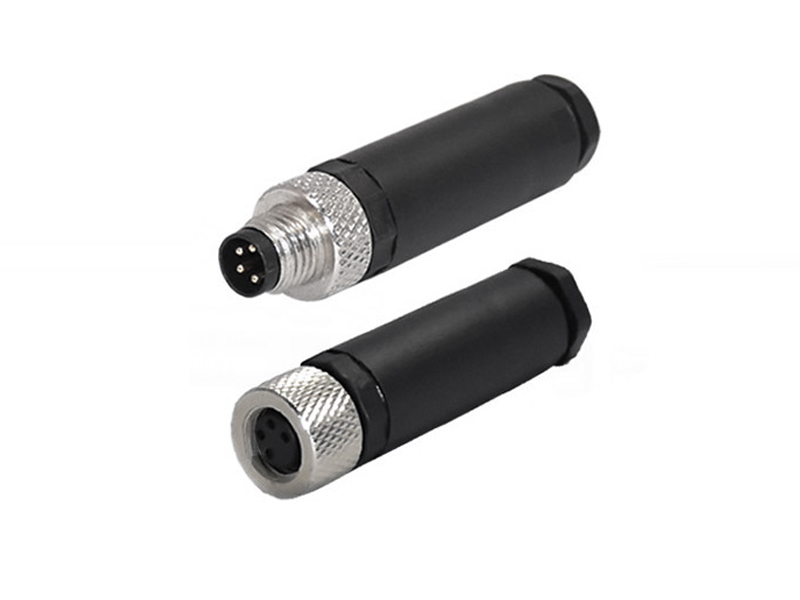

| Number of pins: | 4 Pins | Key Position: | A Coded |
| Left Connector: | M8 Plug Straight | Right Connector: | - |
| AWG Gauge: | 22AWG ~ 24 AWG | Connection Type | Screw Locking |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PA, Black | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | PA, Black | Sealing: | NBR |
| Shielding: | - | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC | TPU |
| Technical Characteristics | |||
| Rated Current: | 4A | Rated Voltage: | 60V |
| Rated Temperature | -20°C ~ + 80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 500 Times | Protection Grade: | IP67 |
| Product Certification: | - | Production Design Standards: | IEC 61076-2-104 |
| Application | |||
