| Specifications | |||

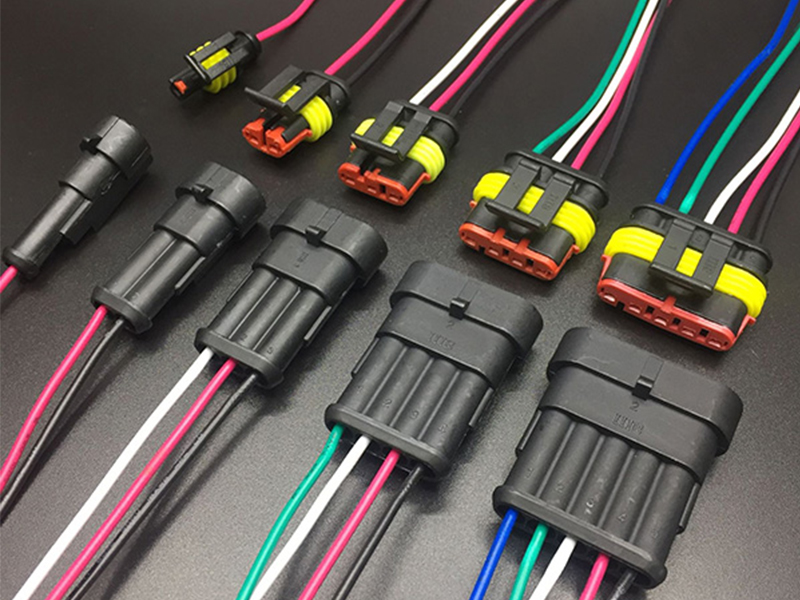

| Number of pins: | 1~6 Pins | Key Position: | - |

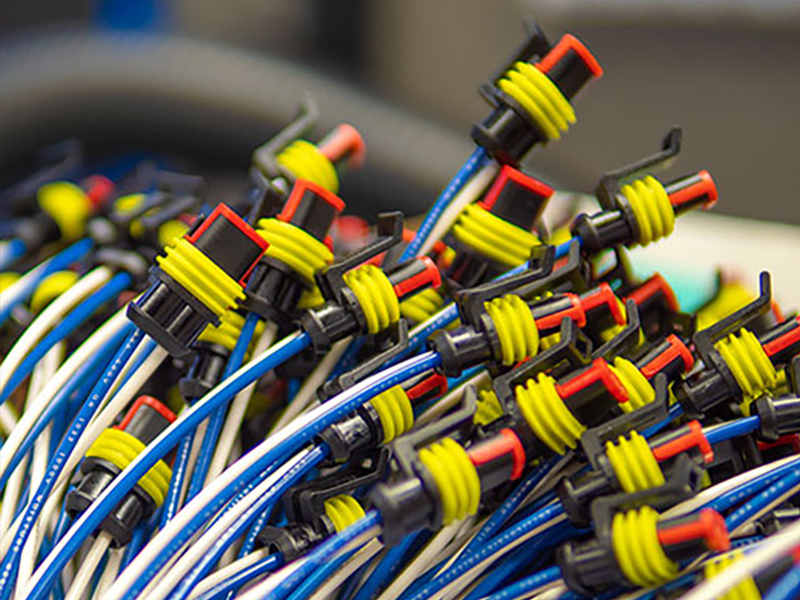

| Left Connector: | AMP SUPERSEAL 1.5 SERIES | Right Connector: | - |
| AWG Gauge: | 16 AWG ~ 22 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PA, Black | Contacts: | Copper Alloy,Tin-Plated |
| Shell: | - | Sealing: | Silicone |
| Shielding: | Be without | Overmolding: | Strain Relief Optional |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 13A | Rated Voltage: | 250V AC,DC |
| Rated Temperature | -40°C ~ + 125°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 10mΩ Max |
| Durability: | ≥ 100 Times | Protection Grade: | IP67 |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
| BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS. | |||
