| Specifications | |||
| Number of pins: | 19 Pins | Key Position: | A |

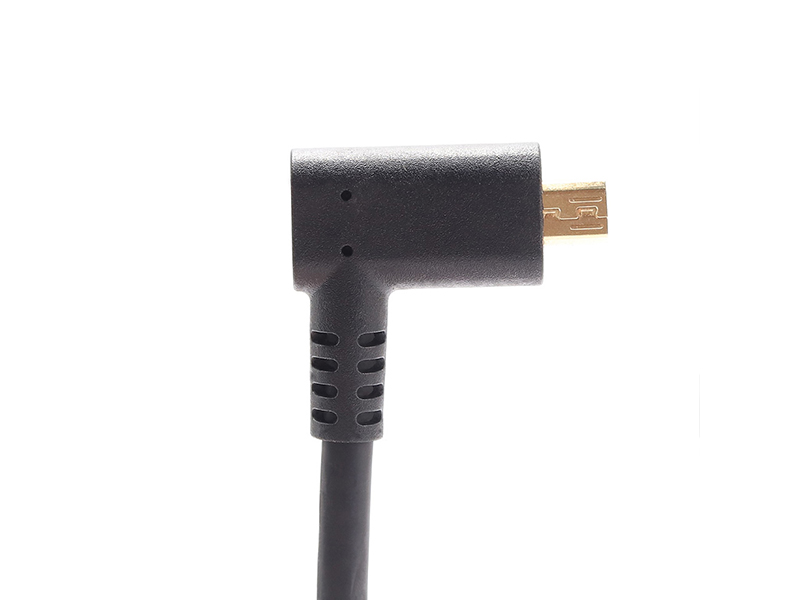

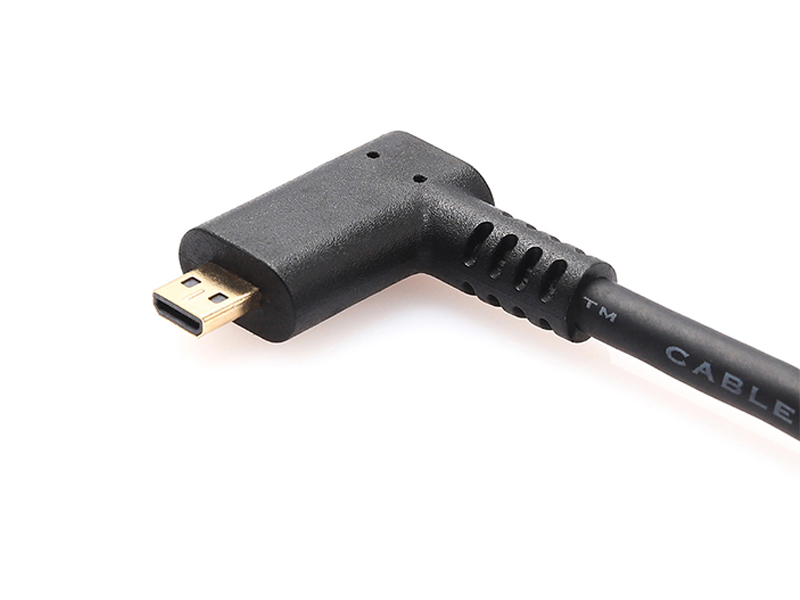

| Left Connector: | HDMI TYPE D PLUG | Right Connector: | HDMI TYPE A PLUG |
| AWG Gauge: | 24 AWG ~ 30 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | LCP, Black | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Copper Alloy,Gold Plated | Sealing: | - |
| Shielding: | Yes | Overmolding: | PVC |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC | TPE |
| Technical Characteristics | |||
| Rated Current: | 1A | Rated Voltage: | 5V |
| Rated Temperature | -40°C ~ + 80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | - |
| Application | |||
